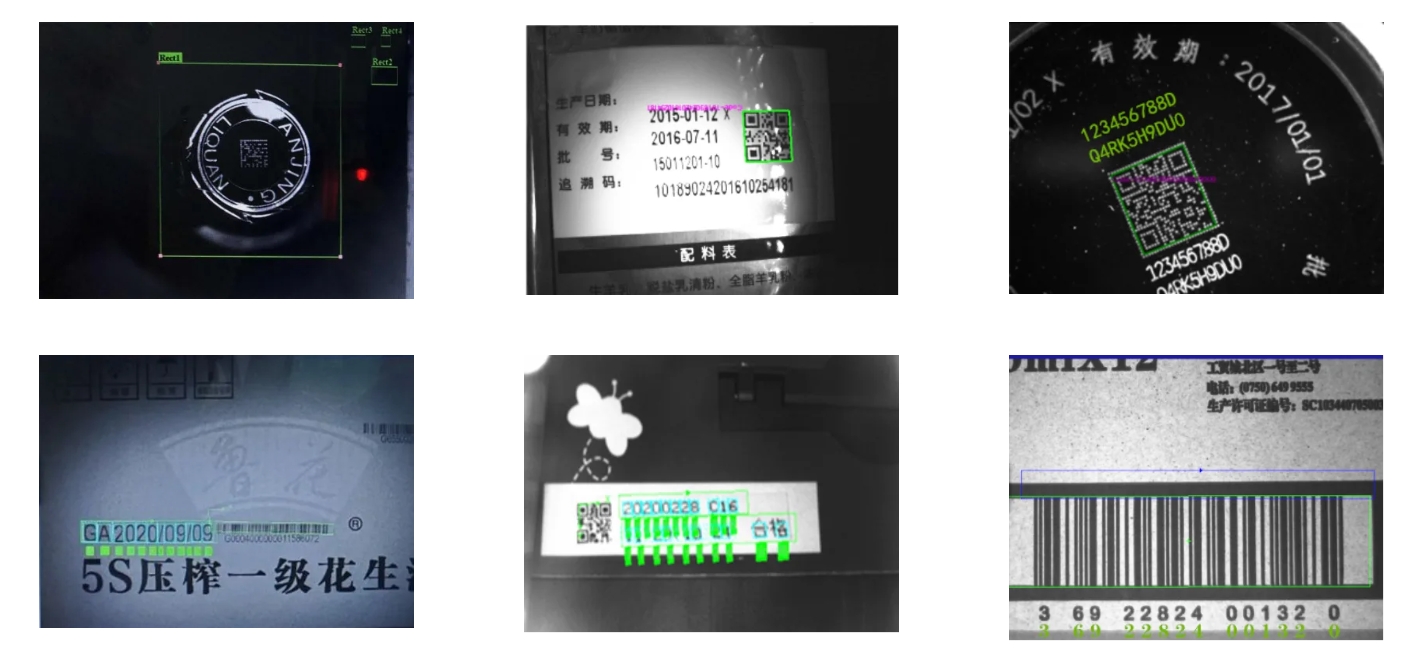

OCR character detection refers to the detection of confirming, distinguishing and judging the characters engraved on parts or products. This technology, also known as engraving detection technology, is used in various occasions.
Details

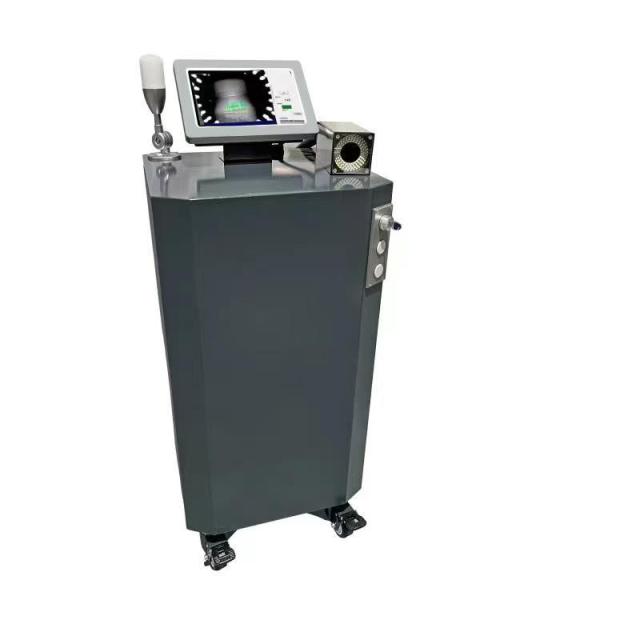

| Content | OCR Character Detection System |
| model | TST-300 |
| Main frequency of controller | 3.3 G, RAM 8G |

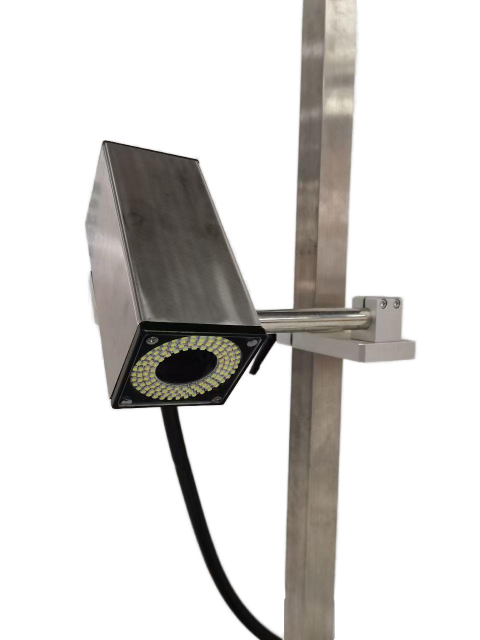

| Camera resolution | 2,000,000 CCD |
| Light source configuration | LED White can be red. |
| input signal | Photosensor |
| output signal | Rejection signal, warning light signal, stop signal |
| Detection speed | Max 20/s |
| Detect visual detachment | 50-120mm |
| With or without communication? | Yes |
| Positioning Tool | Pattern Round Edge |
| Testing Tool | Pattern Pixel count Brightness and contrast Edge |
| Measuring and Counting Tools | Distance Angle and Diameter Patterns and Edges |
| Power Supply | AC220V 50Hz 200W |
| Sealed environment | IP62 |
| Working temperature | 00C-500C |
| Relative humidity (no condensation) | 10-90% |
